Database Design

For the final project of my Database Design class we had to work in teams to design and implement a database in SQL and SQL*Plus. We went through a bunch of steps to robustly create our database, starting by choosing our scenario, a tutoring website. Then making an ER diagram, then converting that to Relation Structure form, then creating the tables in our database, then populating those tables, and finally outputting some reports.

back

---

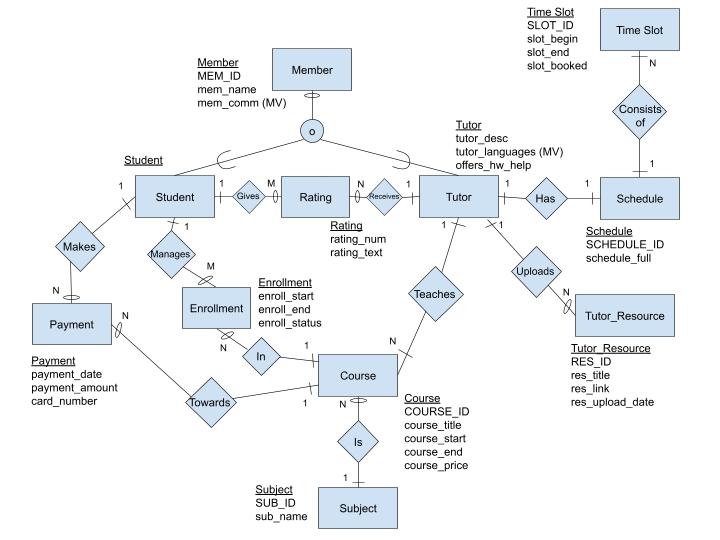

Our ERD

create table Member
(
	mem_id char(6),
	mem_name varchar2(24),
	is_student char(1) default 'N' check (is_student in ('Y', 'N')),
	is_tutor char(1) default 'N' check (is_tutor in ('Y', 'N')),
	primary key (mem_id)
);

create table Student
(
	mem_id char(6),
	primary key (mem_id),
	foreign key (mem_id) references Member
);

create table Tutor
(
	mem_id char(6),
	tutor_desc varchar2(196) not null,
	offers_hw_help char(1) default 'N' check (offers_hw_help in ('Y', 'N')),
	schedule_id char(7) not null,
	primary key (mem_id),
	foreign key (mem_id) references Member,
	foreign key (schedule_id) references Schedule
);

create table Course
(
  course_id char(8),
  course_title varchar2(36) not null,
  course_start date not null,
  course_end date not null,
  course_price number default 0 check (course_price >= 0),
  tutor_id char(6) not null,
  sub_id char(4) not null,
  primary key (course_id),
  foreign key (tutor_id) references Tutor(mem_id),
  foreign key (sub_id) references Subject
);

create table Enrollment
(
	stu_id char(6),
	course_id char(8),
	enroll_start date not null,
	enroll_end date,
	enroll_status varchar2(10) default 'ENROLLED' check (enroll_status in ('ENROLLED', 'COMPLETED', 'CANCELED')),
	primary key (stu_id, course_id),
	foreign key (stu_id) references Student(mem_id),
	foreign key (course_id) references Course
);

create table Payment
(
	stu_id char(6),
	course_id char(8),
	payment_date date not null,
	payment_amount decimal(6, 2) default 0.99 check (payment_amount > 0),
	card_number char(16) not null,
	primary key (stu_id, course_id),
	foreign key (stu_id) references Student(mem_id),
	foreign key (course_id) references Course
);

create table Rating
(
  stu_id char(6),
  tutor_id char(6),
  rating_num number default 5 check (rating_num between 1 and 5),
  rating_text varchar2(128),
  primary key (stu_id, tutor_id),
  foreign key (stu_id) references Student(mem_id),
  foreign key (tutor_id) references Tutor(mem_id)
);

Some SQL snippets for implementing the ERD
